Ref:0190124020

Seal  20mm

€ 303.00

Inc Tax

Shaft seals for shafts from 20mm to 60mm

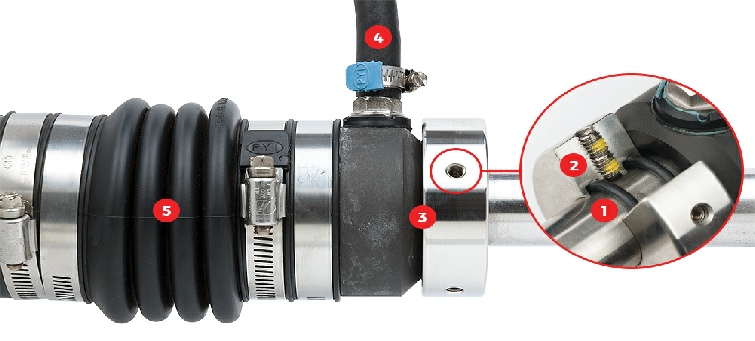

The PSS shaft seal is a mechanical face seal that is created between the flat surfaces of the rotating stainless steel rotor and the stationary carbon flange. The stationary carbon flange is attached to the vessels stern tube with hose clamps and the carbon flange is attached to the front side of the bellows with hose clamps.


 The stainless steel rotor is fit on the shaft in front of the carbon flange. The stainless steel rotor is used to compress the bellows before the collar is secured to the shaft with set-screws. This compression (pre-load) maintains contact between the faces and allows the PSS to compensate for the thrust from the propeller. The carbon flange is bored larger than the shaft diameter allowing it to “float” around the shaft and thus compensate for most misalignment and vibration problems. The stainless steel collar is sealed to the shaft by two o-rings that are recessed into the bore of the collar. These o-rings rotate with the shaft and stainless steel rotor and do not experience wear during operation.


Ref:0190124022

Seal  22mm

€ 303.00

Inc Tax

Ref:0190124025

Seal  25mm

€ 315.00

Inc Tax

Ref:0190124030

Seal  30mm

€ 315.00

Inc Tax

Ref:0190124031

Seal  11/4”

€ 400.00

Inc Tax

Ref:0190124035

Seal  35mm

€ 400.00

Inc Tax

Ref:0190124038

Seal  11/2”

€ 521.00

Inc Tax

Ref:0190124040

Seal  40mm

€ 521.00

Inc Tax

Ref:0190124044

Seal  13/4”

€ 575.00

Inc Tax

Ref:0190124045

Seal  45mm

€ 575.00

Inc Tax

Ref:0190124050

Seal  50mm

€ 690.00

Inc Tax

Ref:0190124051

Seal  2”

€ 690.00

Inc Tax

Ref:0190124055

Seal  55mm

€ 690.00

Inc Tax

Ref:0190124057

Seal  21/4”

€ 781.00

Inc Tax

Ref:0190124063

Seal  21/2”

€ 781.00

Inc Tax

Ref:0190124060

Seal  60mm

€ 781.00

Inc Tax

 PSS dry shaft seals
